Mô tả chi tiết

BẢO MẬT

Network Security:
• SPI Firewall
• Access Control
• IP & MAC Binding
• Application Layer Gateway
• HomeShield Security
Real-Time IoT Protection
Malicious Site Blocker
Intrusion Prevention System
DDoS Attack Prevention
Home Network Scanner
Guest Network:
• 1× 5 GHz Guest Network
• 1× 2.4 GHz Guest Network
VPN Server:
• OpenVPN Server
• PPTP VPN Server
• L2TP VPN Server
• WireGuard VPN Server
VPN Client:
• Open VPN Client
• PPTP VPN Client
• L2TP VPN Client
• WireGuard VPN Client
WiFi Encryption:
• WPA
• WPA2
• WPA3
• WPA/WPA2-Enterprise (802.1x)

WI-FI

WiFi Speeds:
BE3600
• 5 GHz: 2882 Mbps (802.11be)
• 2.4 GHz: 688 Mbps (802.11be)
WiFi Range:
- 3 Bedroom Houses
- 4× External Antennas
- Multiple antennas form a signal-boosting array to cover more directions and large areas
Beamforming
- Concentrates wireless signal strength towards clients to expand WiFi range
WiFi Capacity:
High
Dual-Band
- Allocate devices to different bands for optimal performance
- 2×2 MU-MIMO
- Simultaneously communicates with multiple MU-MIMO clients
OFDMA
- Simultaneously communicates with multiple clients
- Airtime Fairness
- Improves network efficiency by limiting excessive occupation
DFS: Access an extra band to reduce congestion
4 Streams: Connect your devices to more bandwidth
Advanced Features:
• Multi-Link Operation (MLO)
• 4K-QAM
• Multi-RUs
• EasyMesh-Compatible
• Works with Alexa and Google Assistant
• IoT Network
Wireless Mode:
• Router Mode
• Access Point Mode

HARDWARE

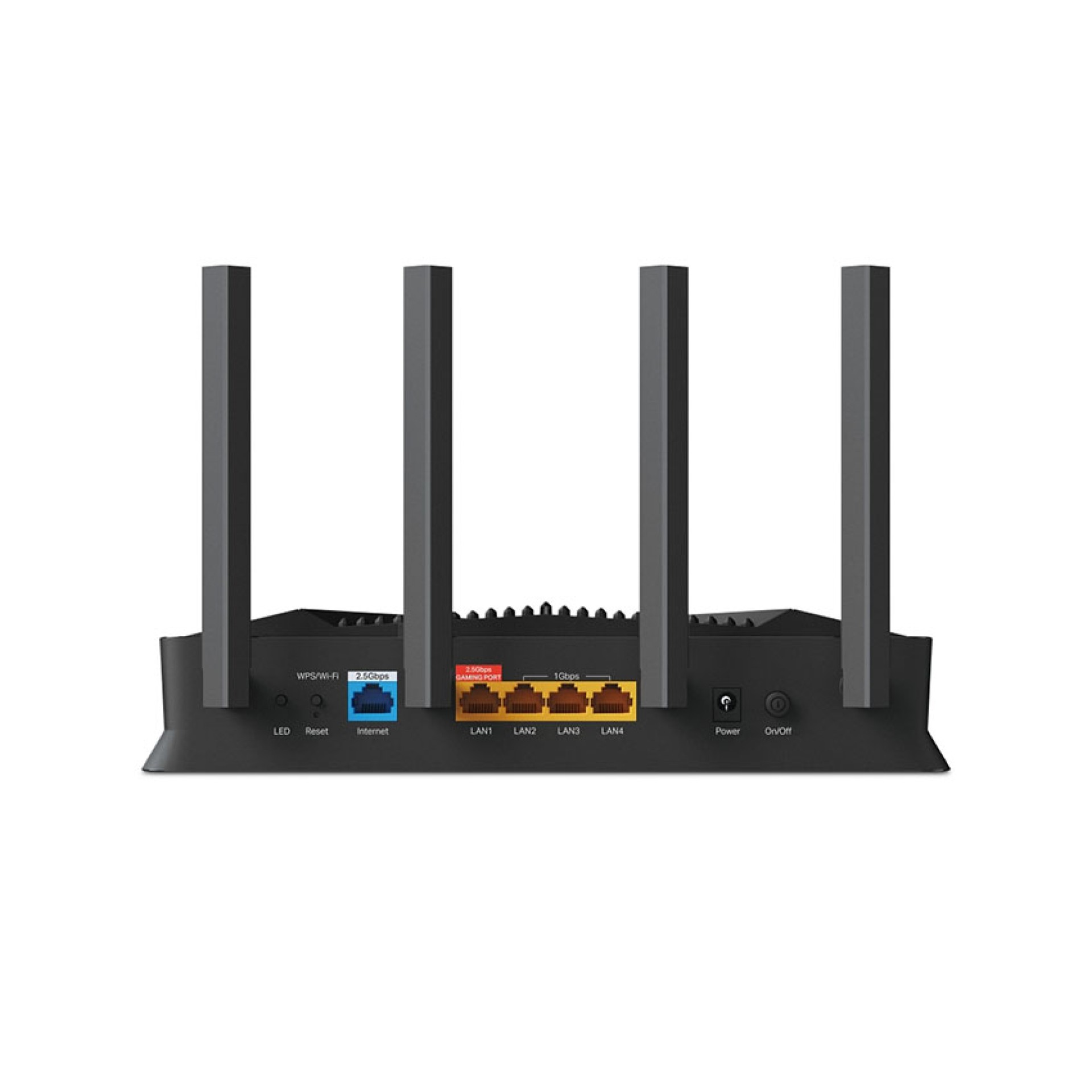

Ethernet Ports:
• 1× 2.5 Gbps WAN
• 1× 2.5 Gbps LAN
• 3× 1 Gbps LAN
USB Support:
1× USB 3.0
• Supported Partition Formats:
NTFS, exFAT, HFS+, FAT32
• Supported Functions:
FTP Server
Media Server
Samba Server
Buttons:
• Power On/Off Button
• LED Button
• WPS Button
• Reset Button
Power: 12 V ⎓ 2 A

SOFTWARE

Protocol:
• IPv4
• IPv6
Game Center:
1. Game Acceleration:
• Accelerate Game Applications with QoS
• Accelerate Game Devices with Gaming Port
• Game Servers Acceleration by GPN
2. Game Panel:
• Network Status
• Router Performance
• RGB Settings
• Accelerated Games and Gears
3. Game Statistics:
Comprehensive Gaming Traffic Reports
4. Dedicated Gaming Band
5 GHz Gaming Band
Service Kit: HomeShield
EasyMesh: Compatible with EasyMesh
Parental Controls:
- HomeShield Parental Controls
- Custom Profiles
- Professional Content Filter Library
- Family Time
- Bedtime
- Off Time
- Time Rewards
- Family Online Time Ranking
- Pause the Internet
- Weekly and Monthly Reports
WAN Type:
• Dynamic IP
• Static IP
• PPPoE
• PPTP
• L2TP
Quality of Service: QoS by Device
Cloud Service:
• Auto Firmware Upgrade
• TP-Link ID
• DDNS
NAT Forwarding:
• Port Forwarding
• Port Triggering
• DMZ
• UPnP
IPTV:
• IGMP Proxy
• IGMP Snooping
• Bridge
• Tag VLAN
DHCP:
• Address Reservation
• DHCP Client List
• Server
DDNS:
• TP-Link
• NO-IP
• DynDNS
Management Features:
• Tether App
• Webpage
Network Services Enabled by Default:
- Web Server
- Manage and configure device through web (HTTP/HTTPS)
• Port: 80/443   Protocol: TCP
DNS
• Port: 53   Protocol: TCP & UDP
DHCP Server
IP address assignment (DHCP)
• Port: 67   Protocol: UDP
App management Manage and configure device through app
• Port: 20001   Protocol: TCP
• Port: 30001   Protocol: TCP
• Port: 20002   Protocol: UDP
System Requirements:
- Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
- Cable or DSL Modem (if needed)
- Subscription with an internet service provider (for internet access)
Certifications: CE, FCC, RoHS
Environment:
• Operating Temperature: 0℃~40℃ (32℉ ~104℉)
• Operating Humidity: 10%~90% non-condensing
